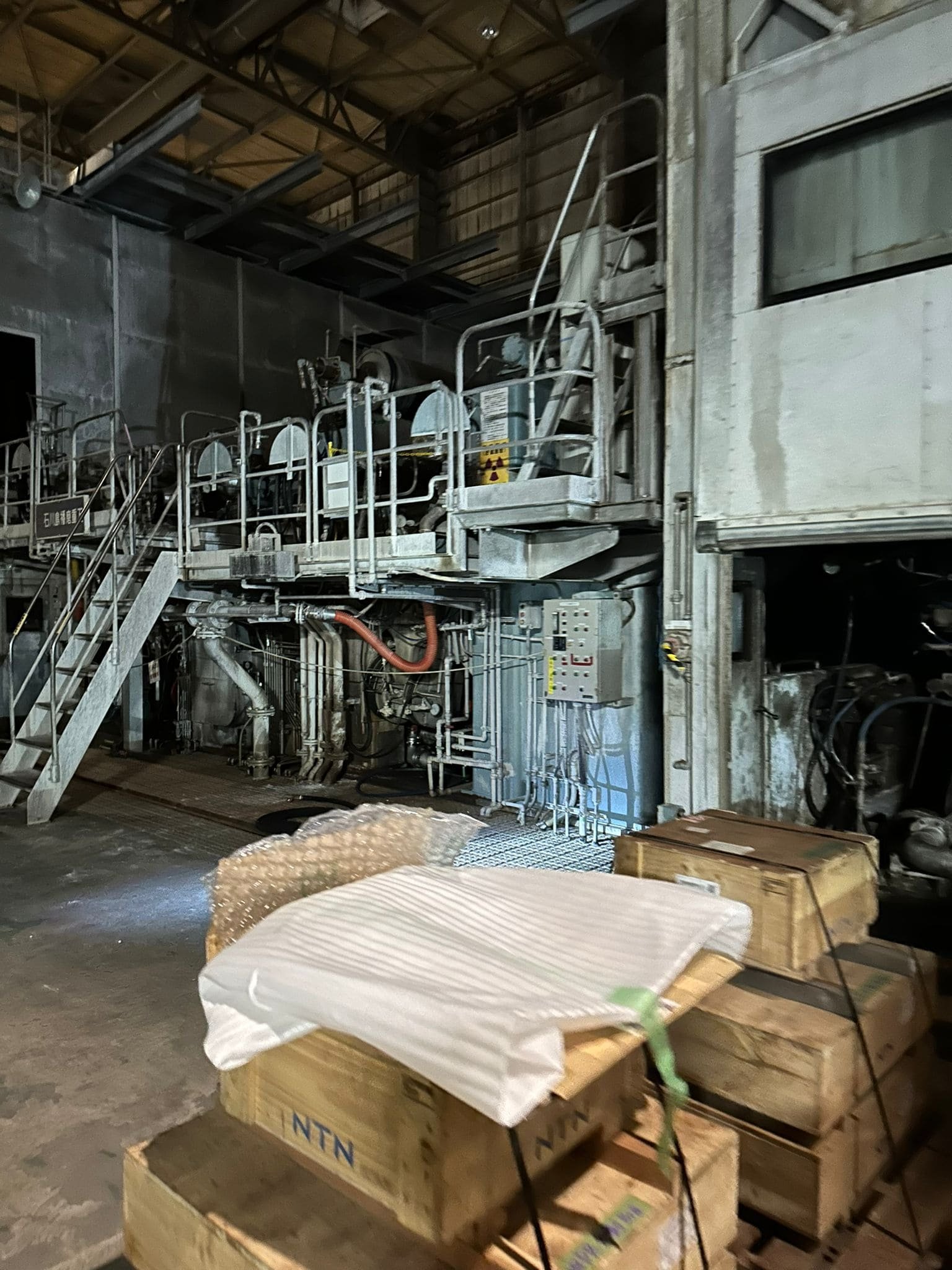

5150mm Paper Mill (GSM: 40-100g/m2)

Manufacturer: VOITH / VALMET /IHI

Installation year: 1990

3P Shoe Press(Sleeve resin):Voith ,Year 2011 Stopped year: 2023

GSM: 40-100g/m2

Production capacity: 500ton/day

Paper: Coated paper (Kraft Paper possible)

Design speed: 1400m/min

(Screen)

Manufacturer: Aigawa (Japan)

De-aeration device: 1st~4th (total 65sets)

1st screen: 5sets, 0.3mm

2nd screen:1set, 0.3mm

3rd screen: 1set, 0.3mm

4th screen: 1set, 0.3mm

5th screen: 1 x 2 m, 0.3mm

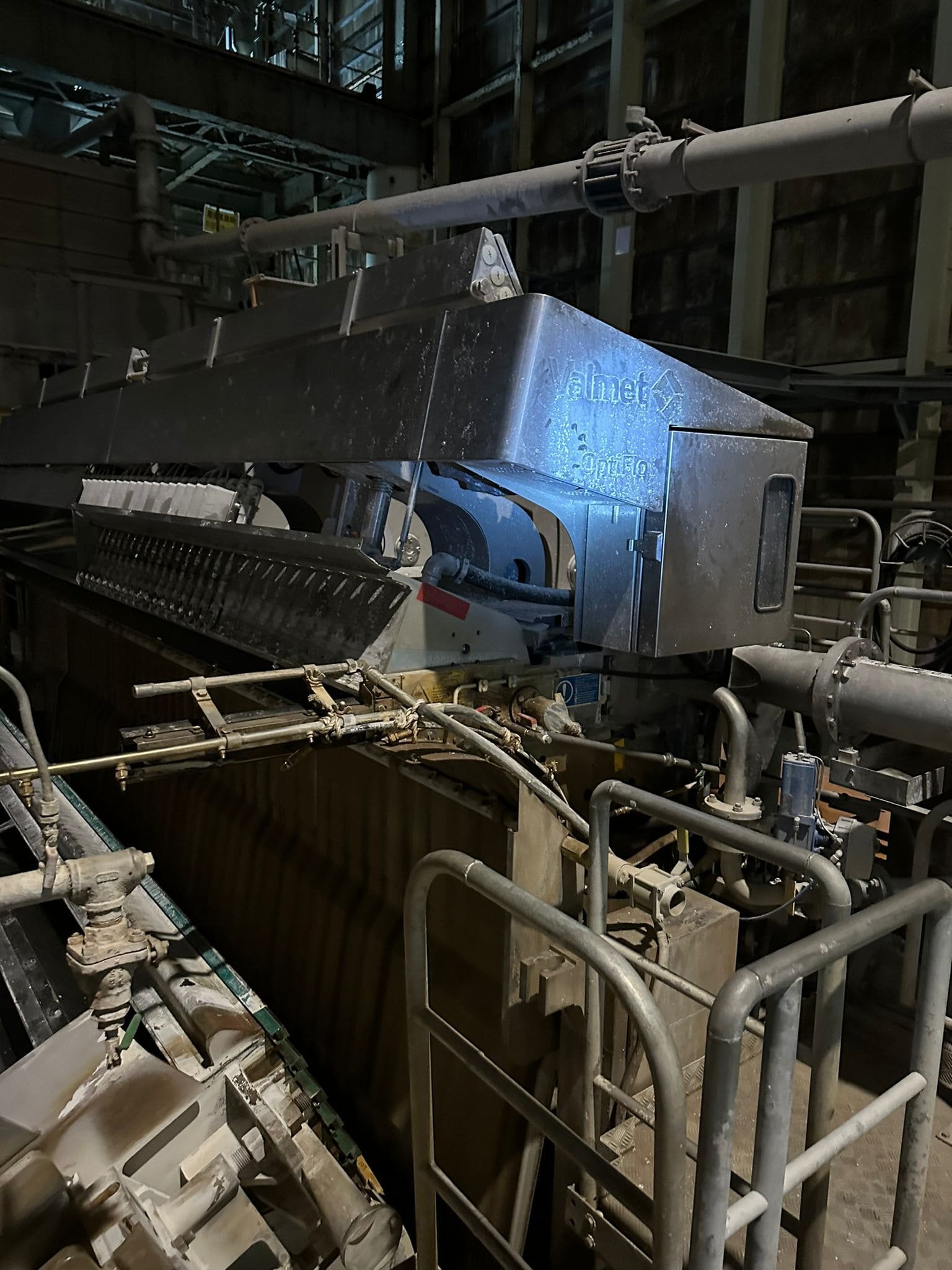

(Head box): Retrofit, 2019

Manufacturer: VALMET

Model: OPTIFLO

Slice width: 5580mm

Slice flow rate: 32.4~65.9m3/min Vibration proof: air cushion

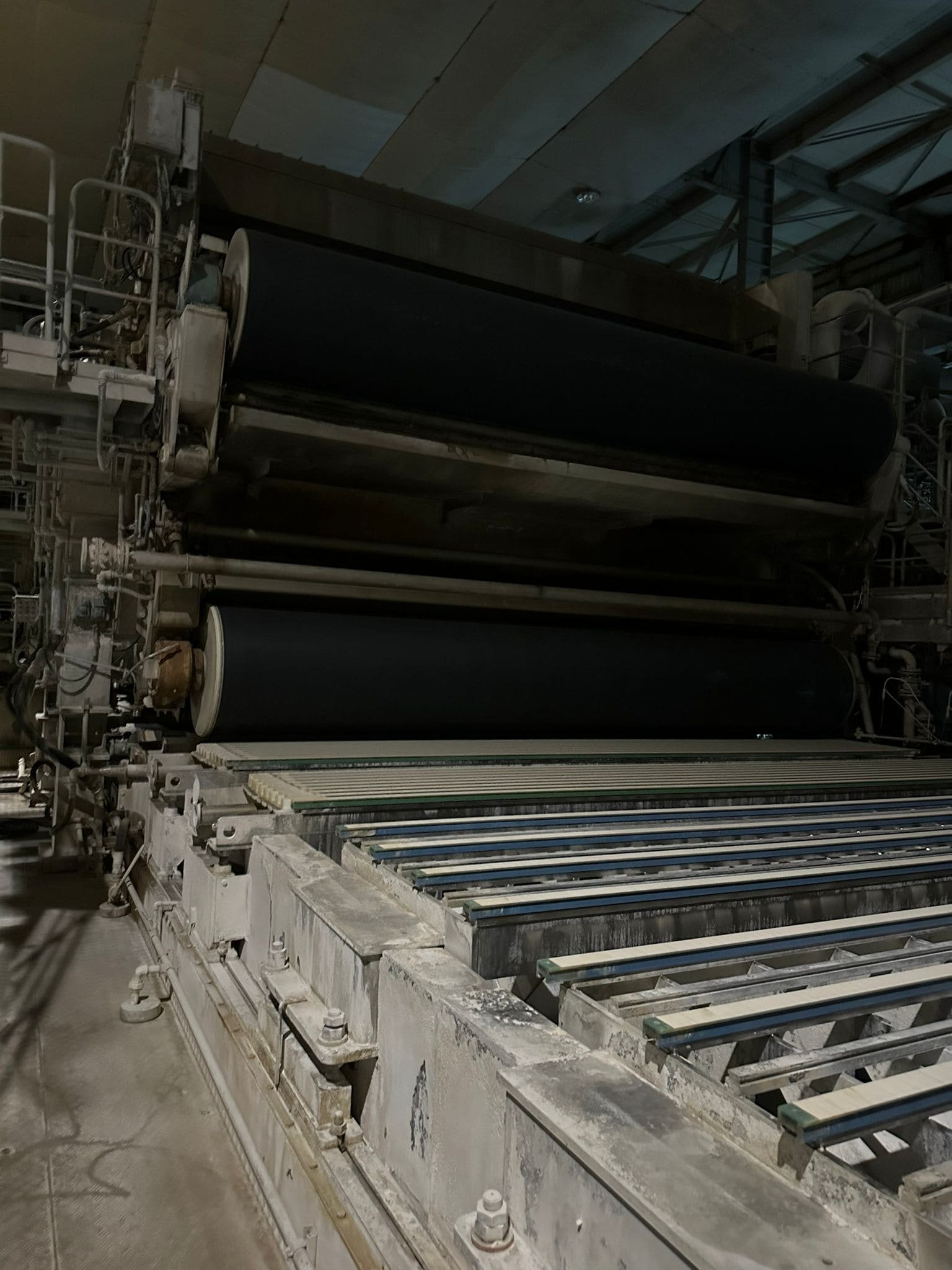

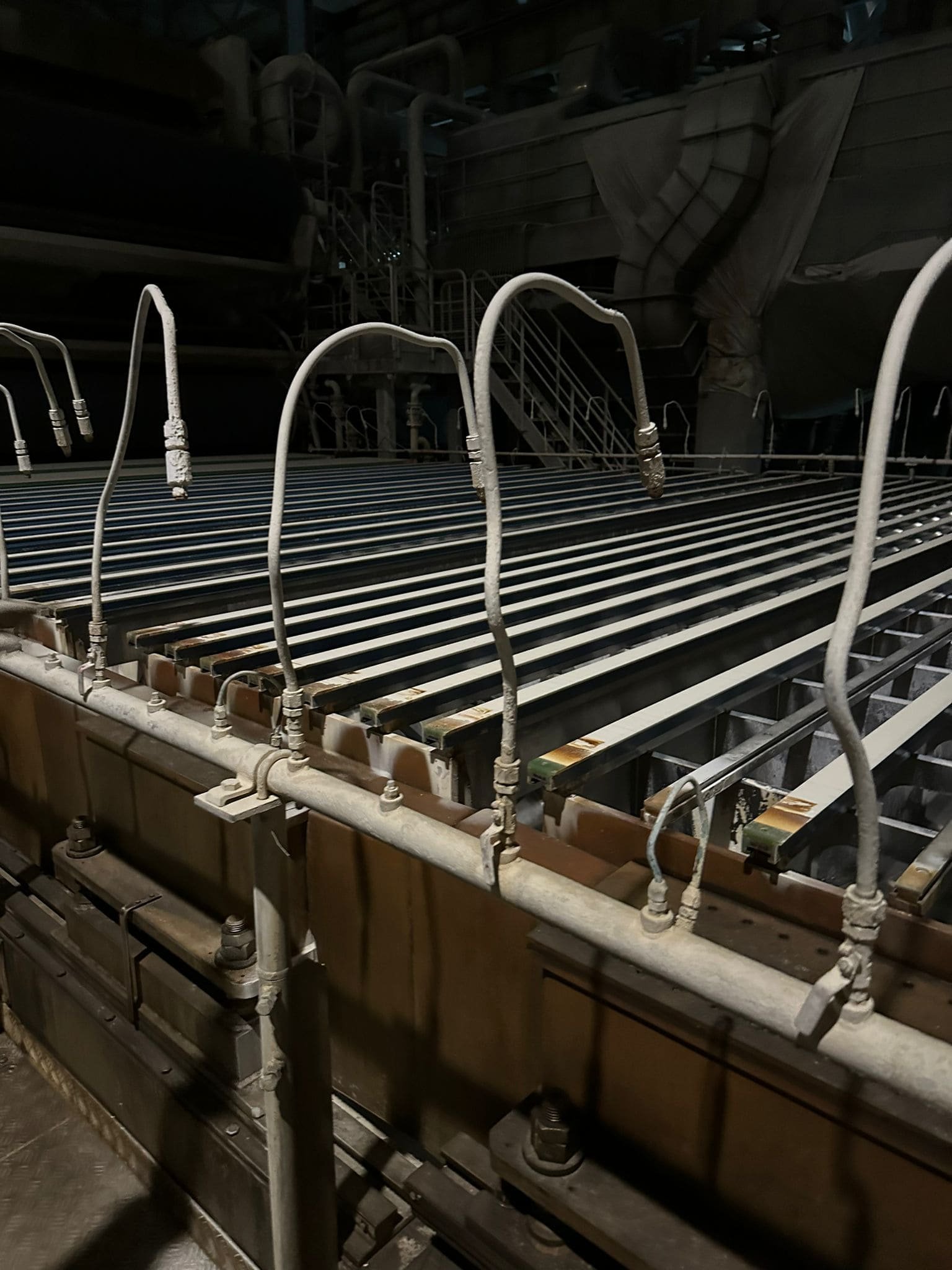

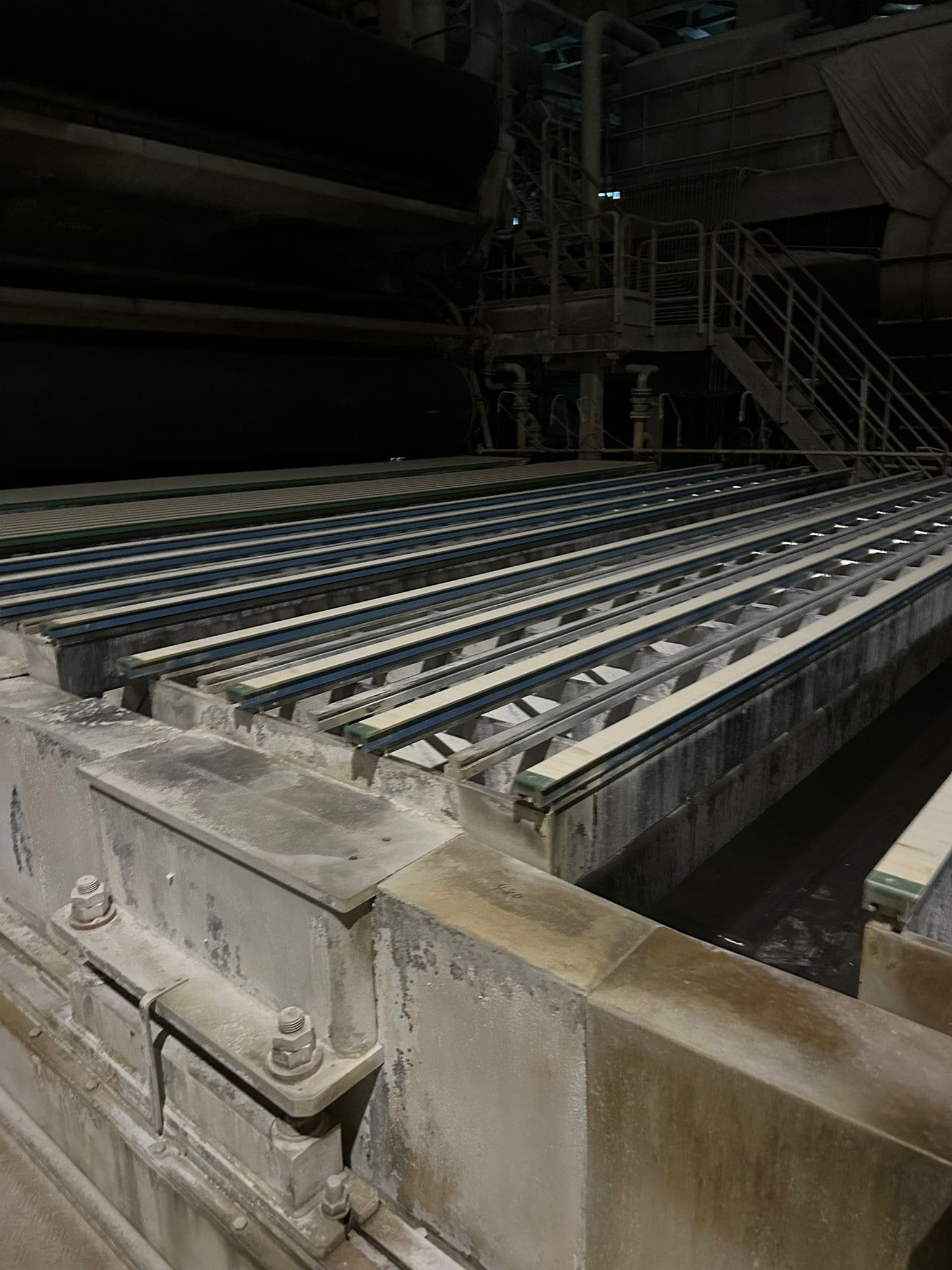

( Twin Wire parts)

Manufacturer: VALMET

Top Wire: 5800mm X 43m (Length) Bottom Wire: 5800mm X 19m (Length) Model: BellForm Former III

Wire tension: 6.2kg/cm2

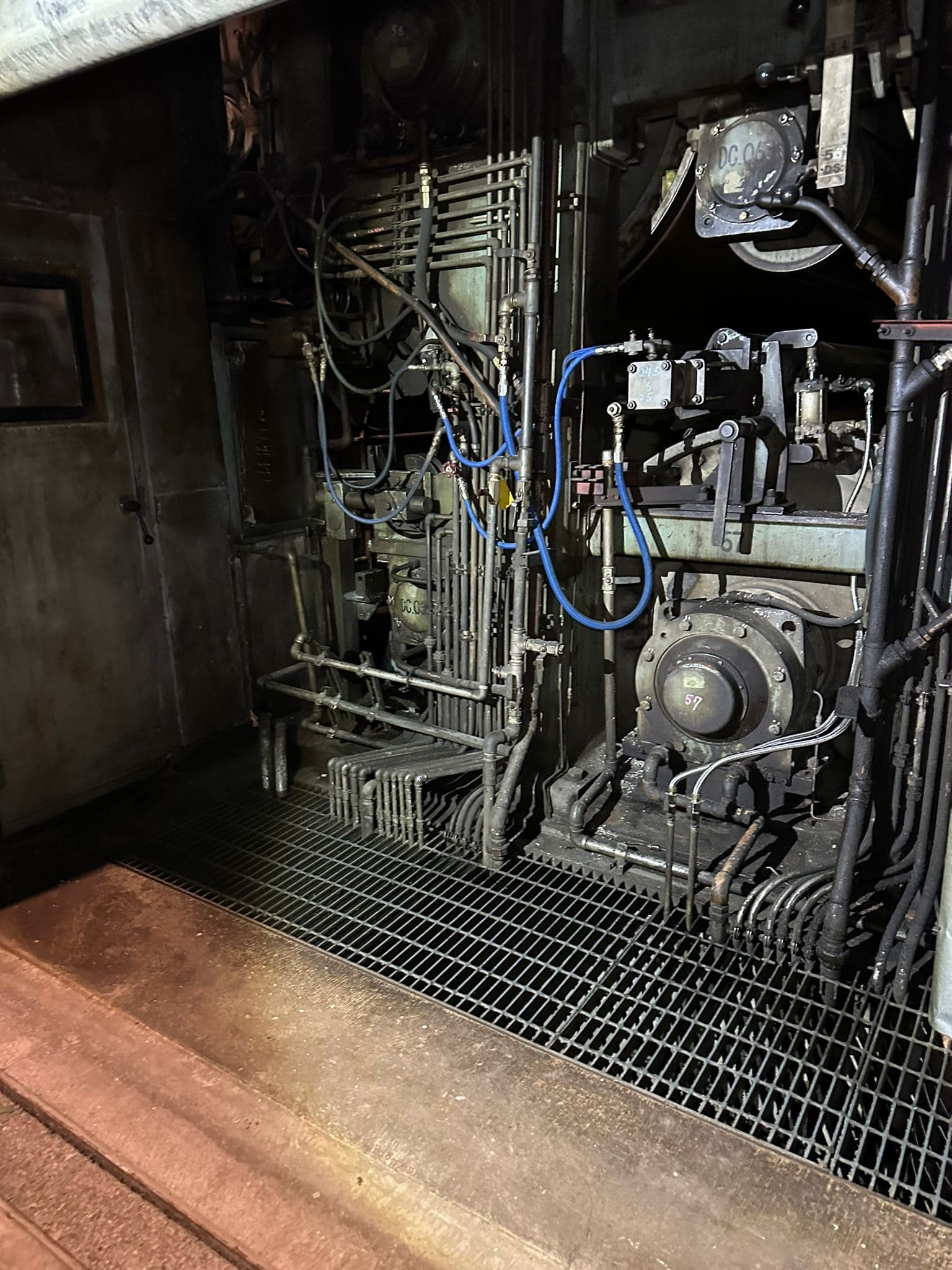

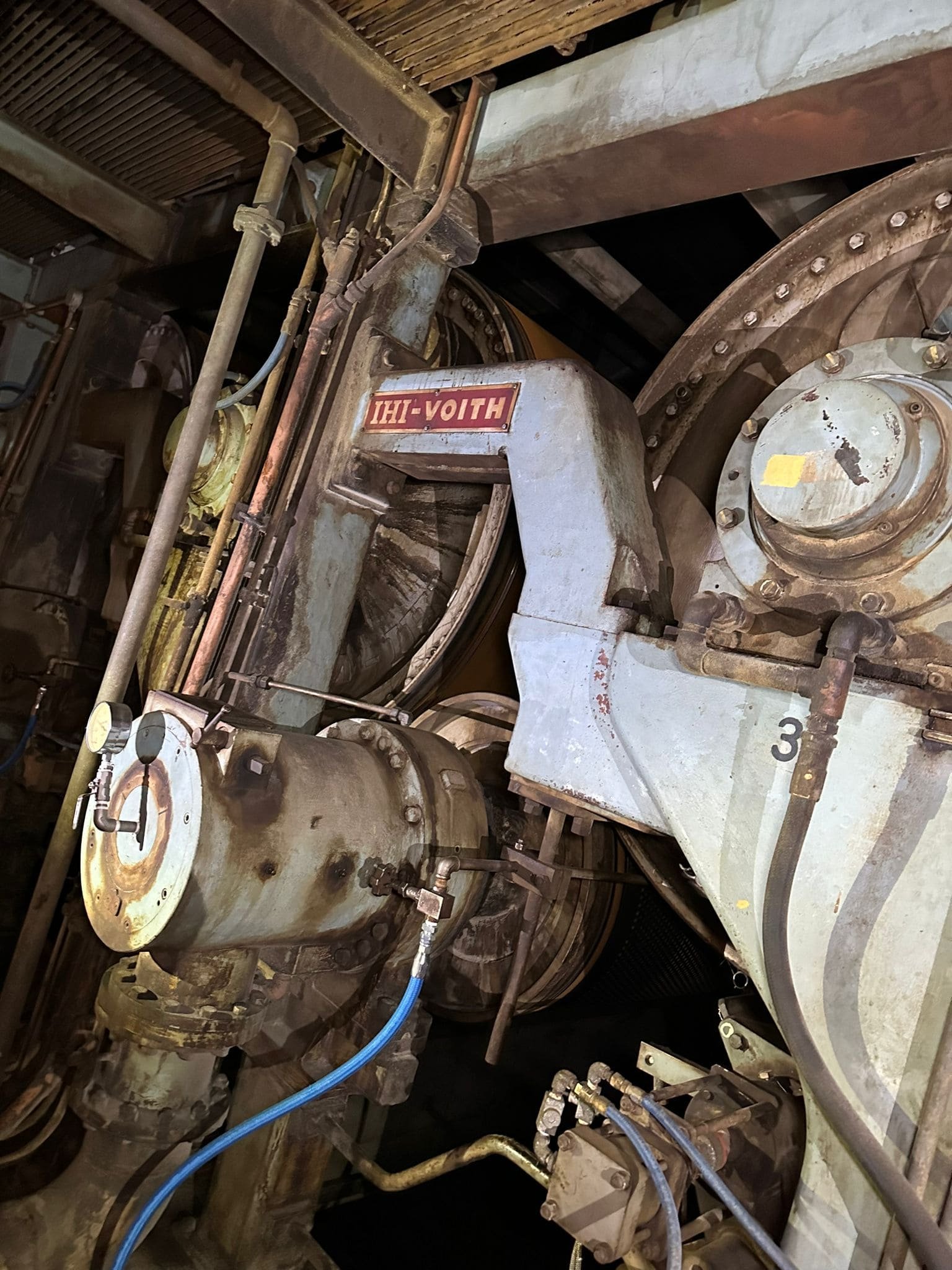

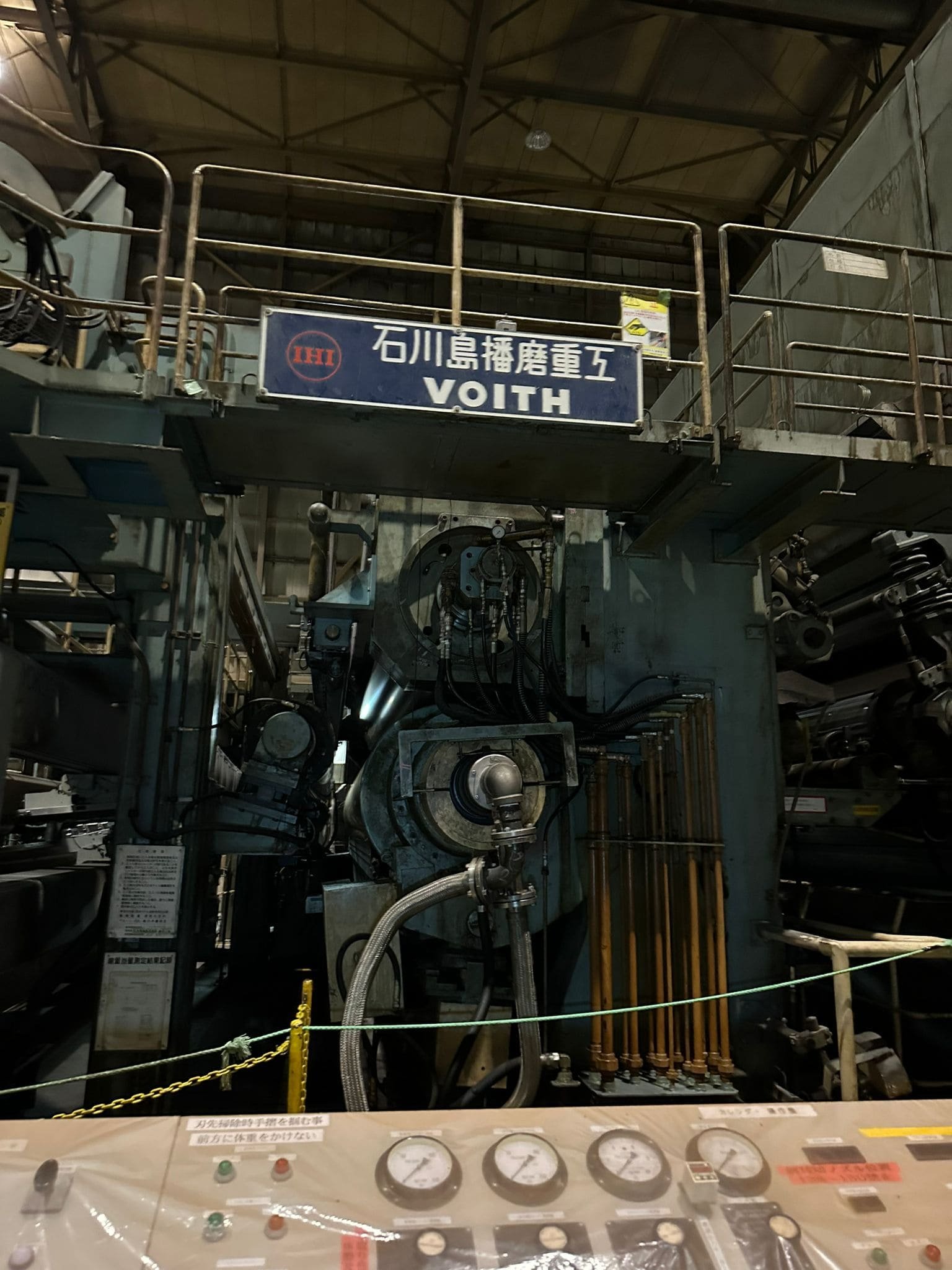

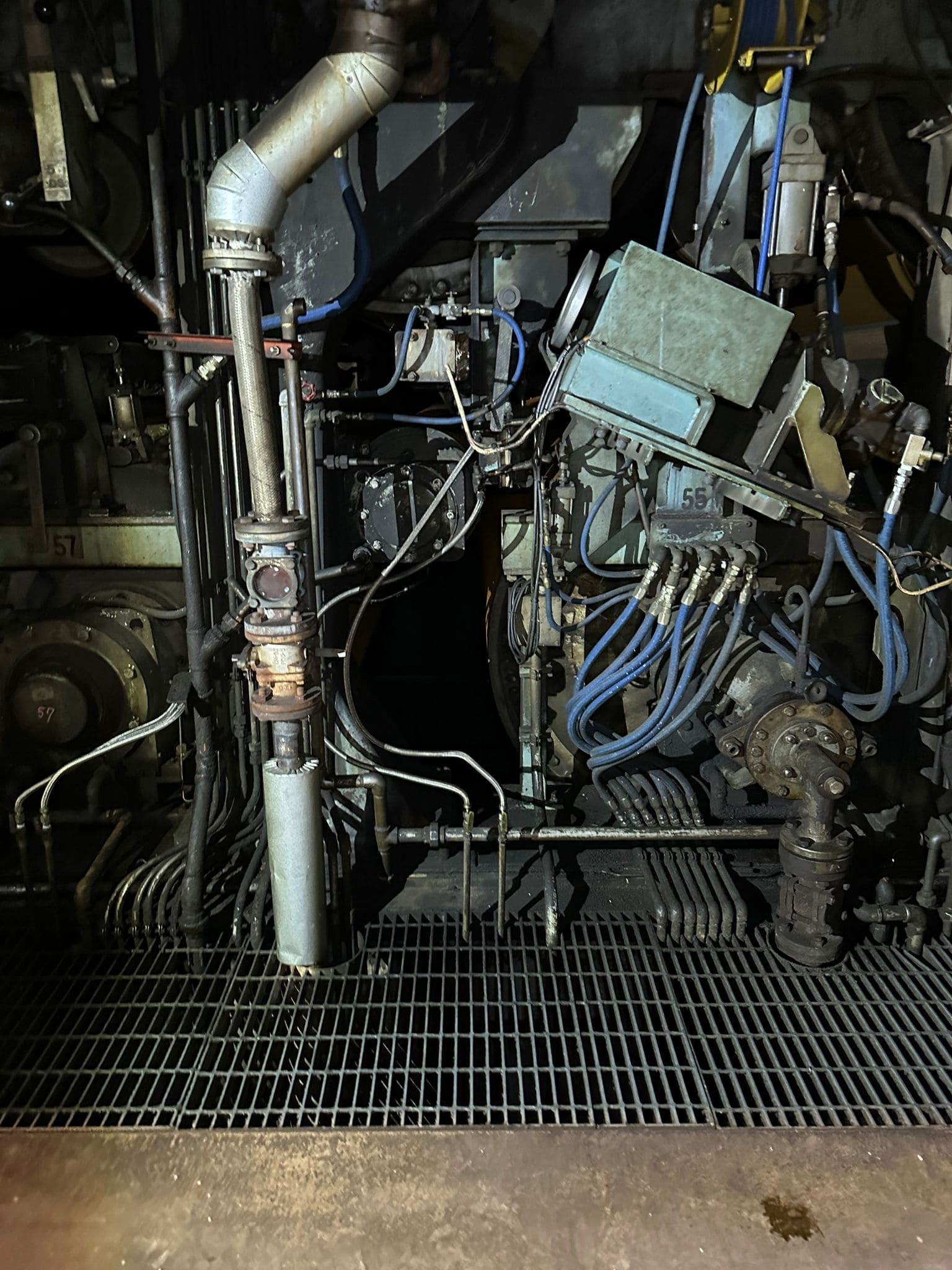

(Press part)

Manufacturer: VOITH

Type: separate type Duo Centry II +Straight through 4P+ Smoother Press

Line pressure: 1P / 2P / 3P / 4P / SM

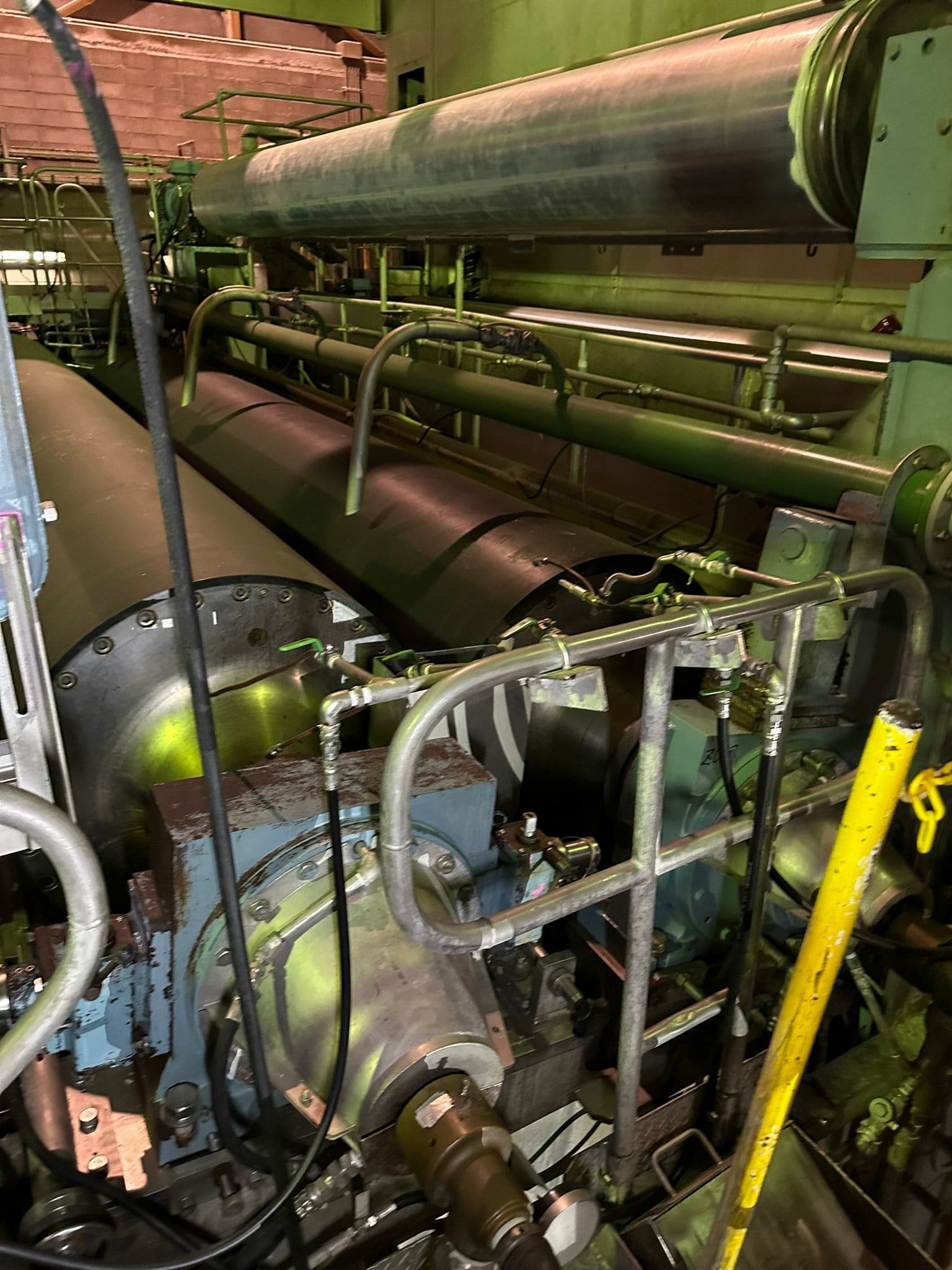

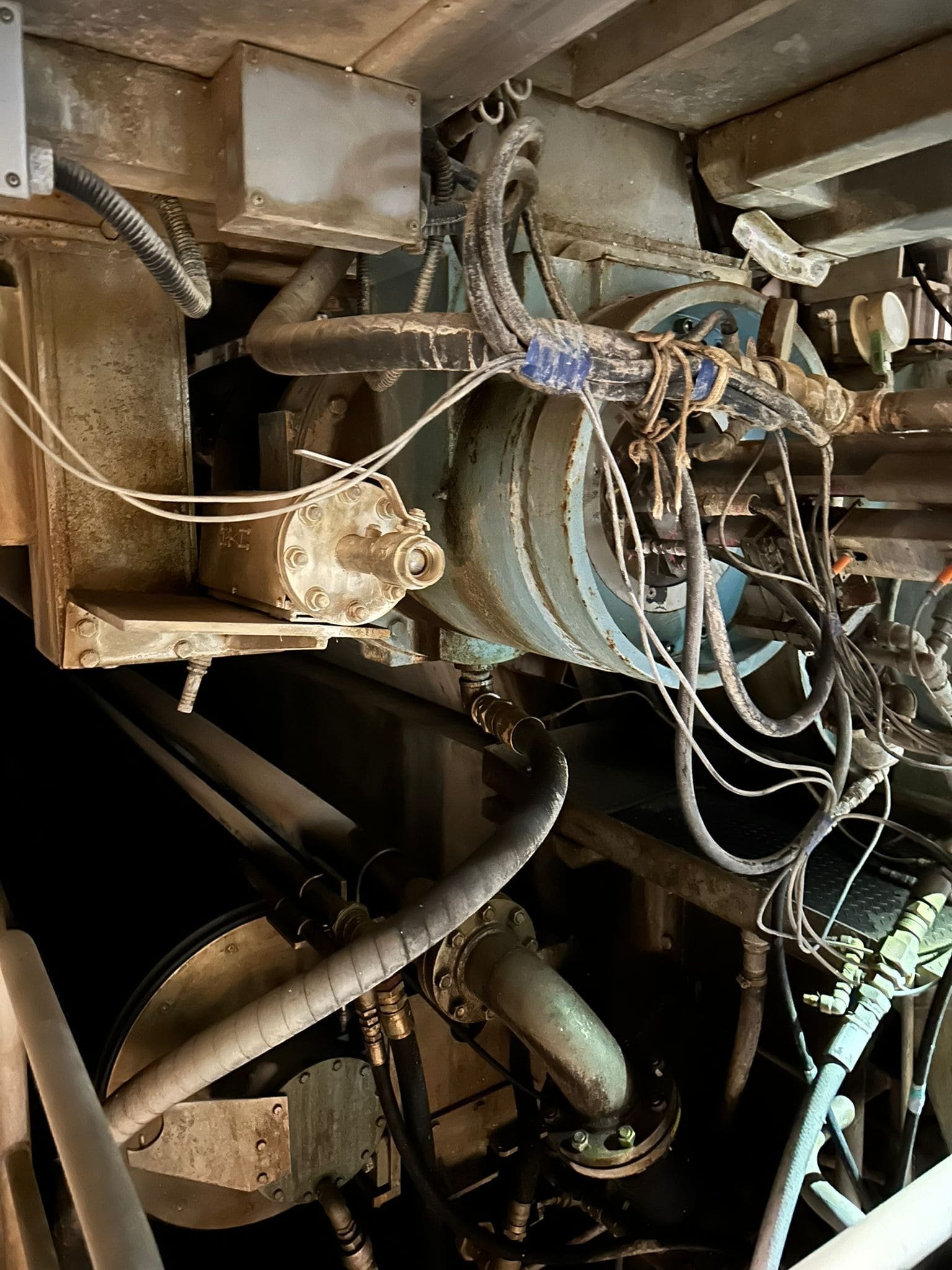

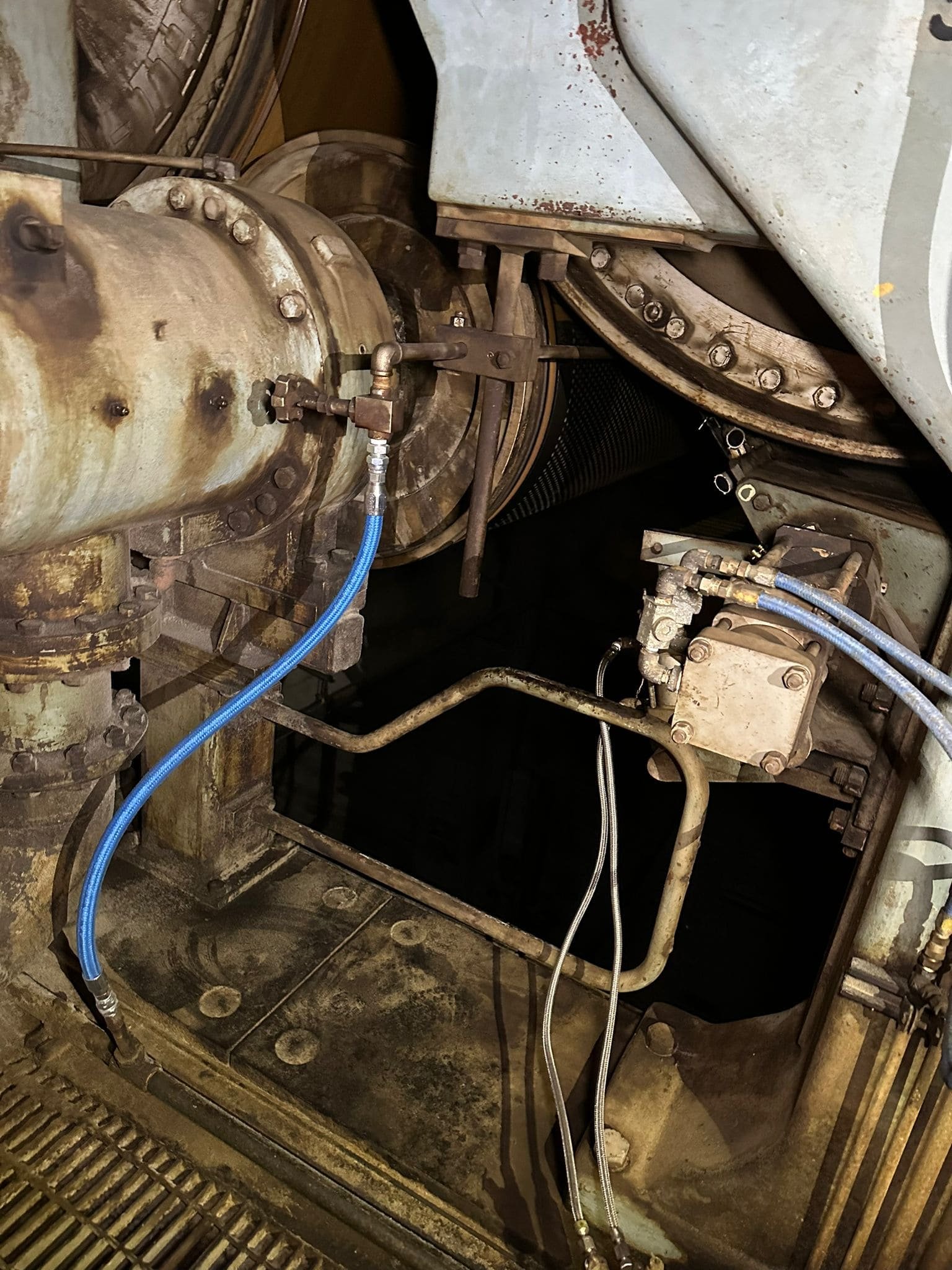

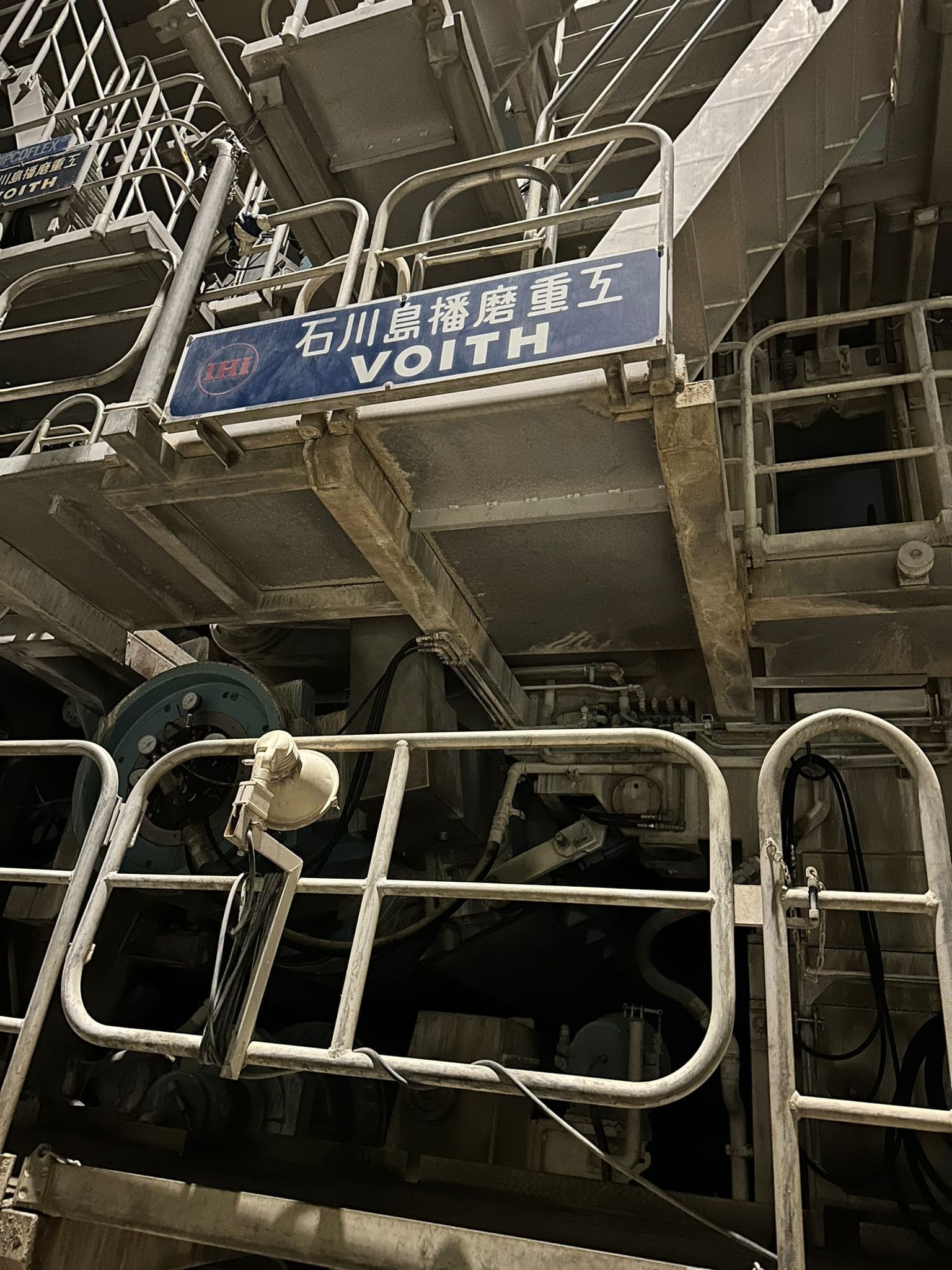

(Dryer)

Manufacturer: VOITH

Closed gear drive type

The number of dryer rolls:

Pre: 5+5+10+12+12= 44 sets

After: 14 sets

Cylinder dryer: 1830mm x 5670L, 10sets Cylinder dryer: 1520mm x 5670L, 48sets Uni-flow blocks: 33sets

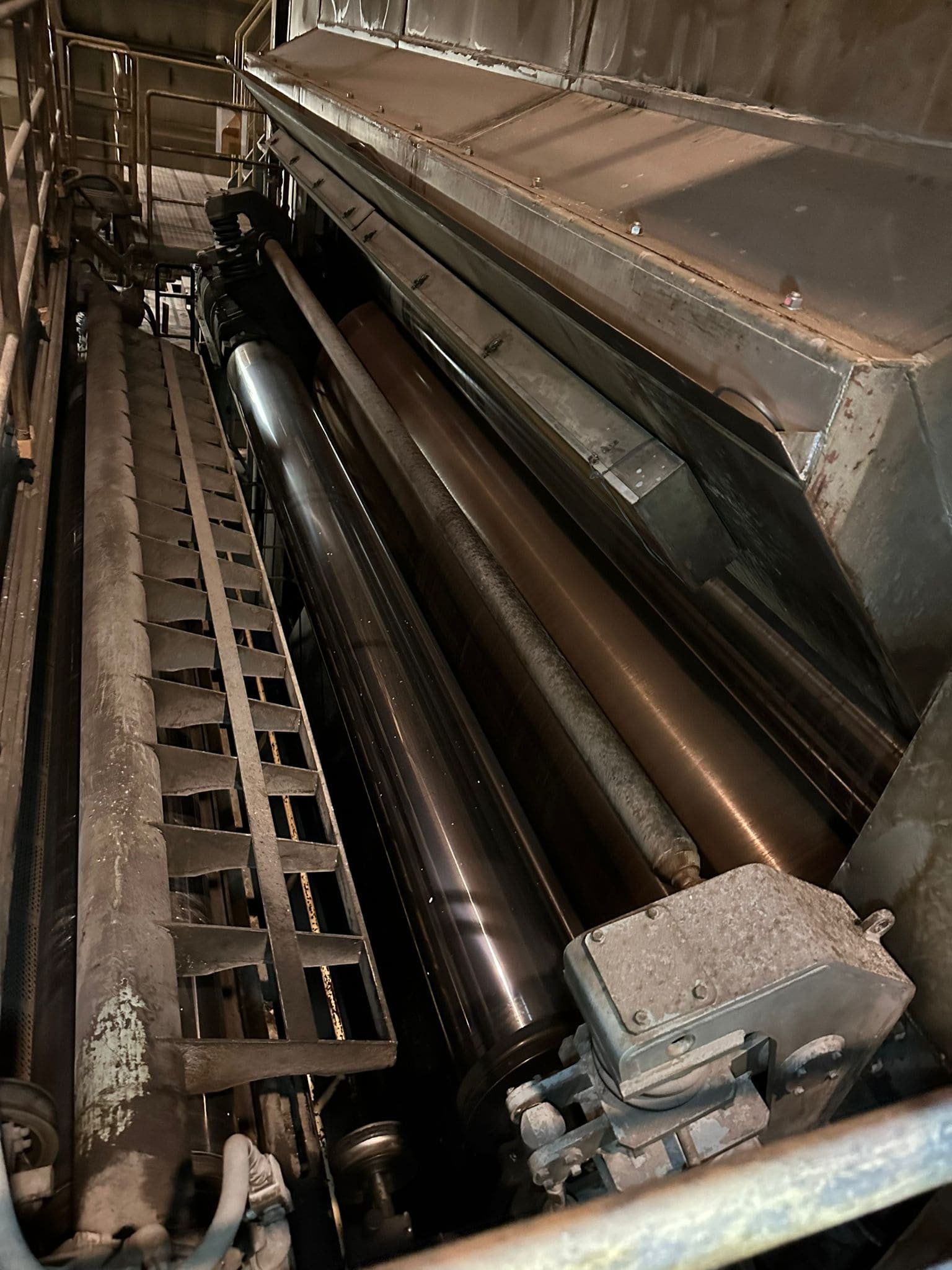

(GRC/ Size Press)

Manufacturer: IHI

6set type Gate roll coater

(Calendar)

Manufacturer: Yodo (Japan) Soft (super) calendar x2 sets Line pressure: design 200kg/cm Top roll (VARIOSWR)

Bottom roll (Heating)

Thermo jet: impact system (Reel)

Manufacturer: IHI

Surface reel

Maximum winding diameter: 3000mm

(Winder)

Retrofit 2018

Manufacturer: VALMET

Single dram surface reel Winding roll diameter: 1500mm

Line speed: 2200mm/min

Slitter segmentation (6 rows)

Winding diameter 250~1500mm x Width 604~2140mm Trim

Automatic total changing device

Air automatic supply device

(Line Length)

Approx. 165m

(Steam pressure)

Low pressure: 0.3MPa

(BM SYSTEM)

Manufacturer: Yokogawa (Japan)

The number of frames: 2

Sensor: BMAF/ BMCCr

(Defect detector)

Manufacturer: Omuron (Japan) Manufacturing year: 1990 Model: 2K40

(Electric supply)

Capacity: 5800KW Frequency: 50Hz

(Blade Coater)

Manufacturer: IHI (Japan) Manufacturing year: 1989

Coating width: 5050mm

Coating mass: 7~15g/m2 (one side) Design speed: 1400m/min
