- Corrugate Paper Production Line 1,8m 220m/min

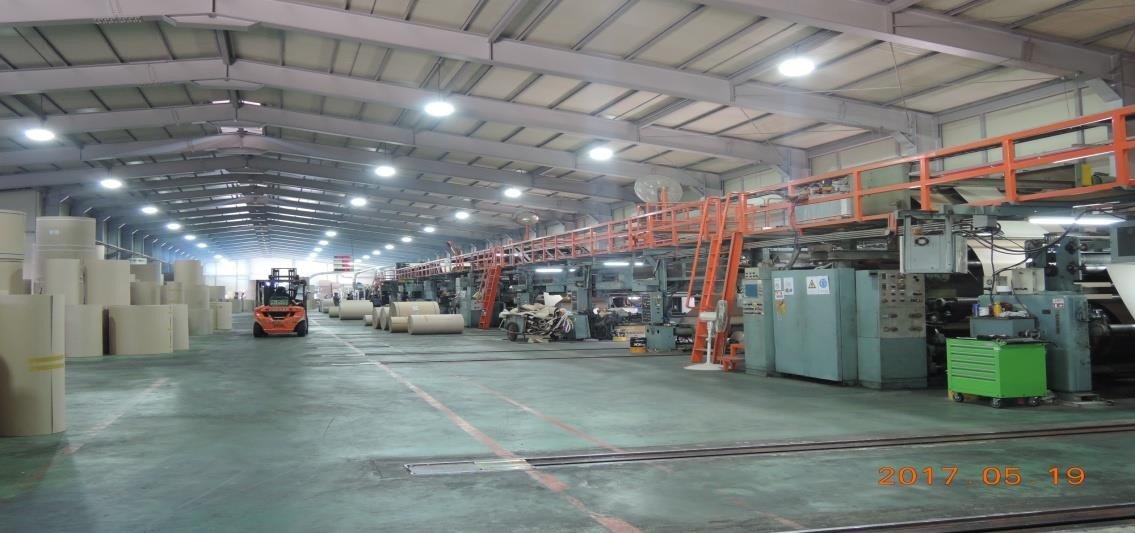

Corrugate Paper Production Line 1,8m 220m/min
| Type ; MITSUBISHI 50F |
| Width ; 1,800 mm
Production flute type; A, B, E, F, AB, BB, BE, BF Flute double-sided production Production maximum speed; 220M/min Installing A, B Back and Surface Coating machine Produce special folder sheets (sheet maximum length of 350M possible) |

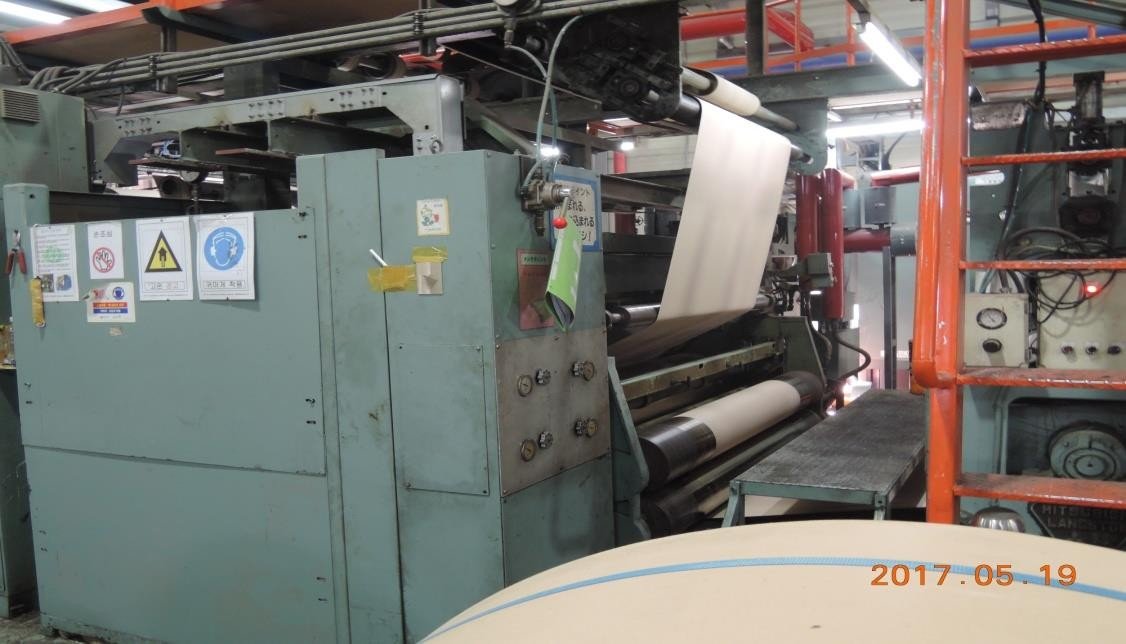

A-Type SINGLE FACTER
| Type ; MITSUBISHI 50F – A | |
| Width ; 2,000 mm | |
| Y.O.M : NA |
| 2) | B-Type SINGLE FACTER
|
| 3) | B-Type SINGLE FACTER (B / E / F Flute cartridge type) |

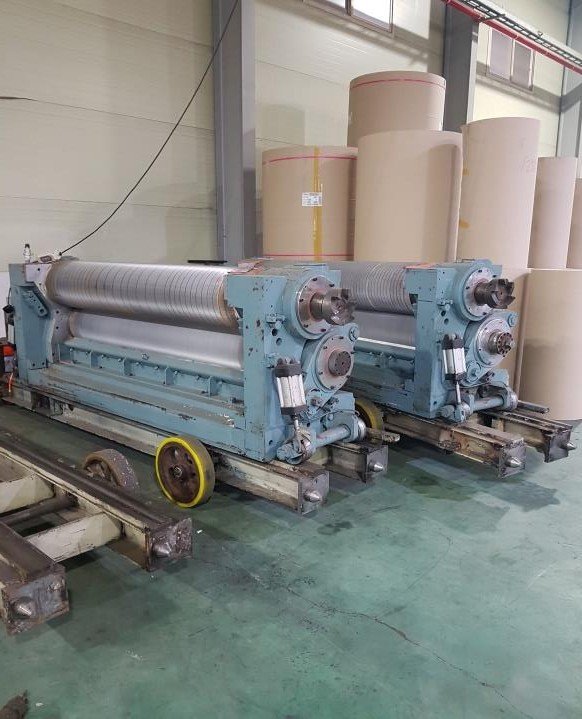

| Type ; B , E , F Flute Cartridges |
| Width ; 1,800 mm |
| Y.O.M ; NA |
| 4) | WEB GUIDE |
| Type ; China Shanghai Honggu package (Uni Control) |
| Width ; 2,200 mm |
| Y.O.M ; 2019. 08 |

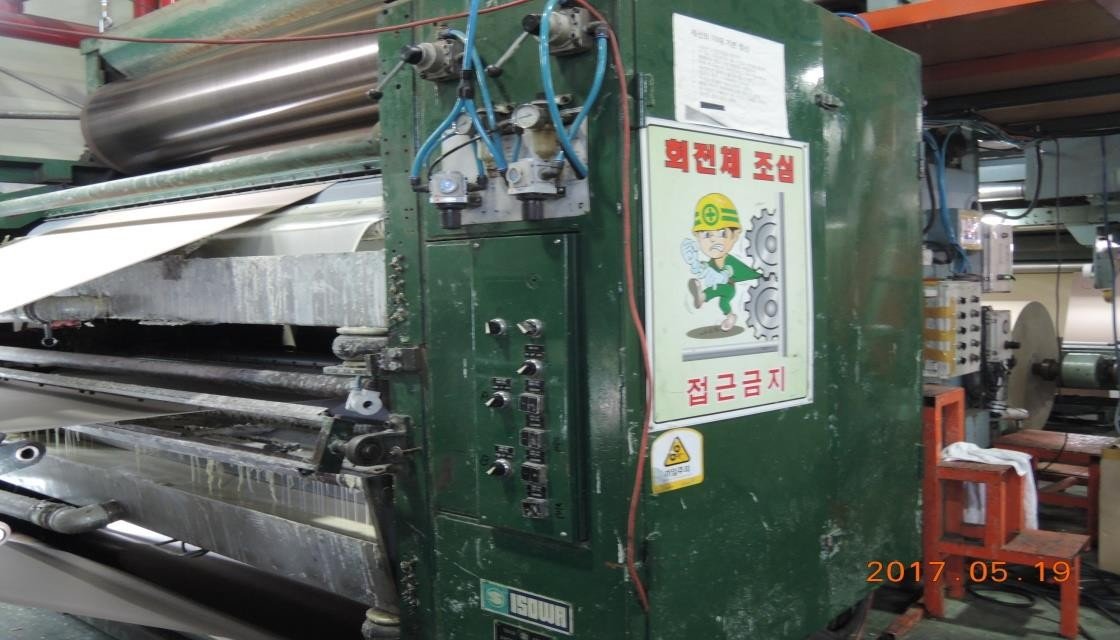

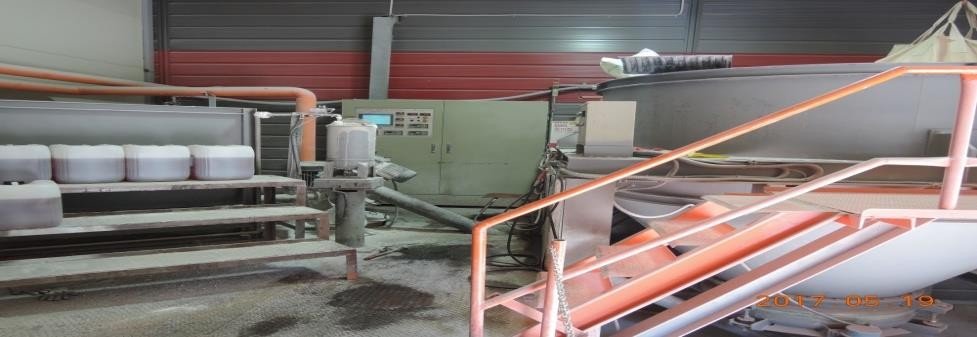

| 5) | GLUE MACHINE |
| Type ; ISOWA , GUD – 600938 |
| Width ; 2,200 mm |
| Y.O.M ; 1989, 11 |

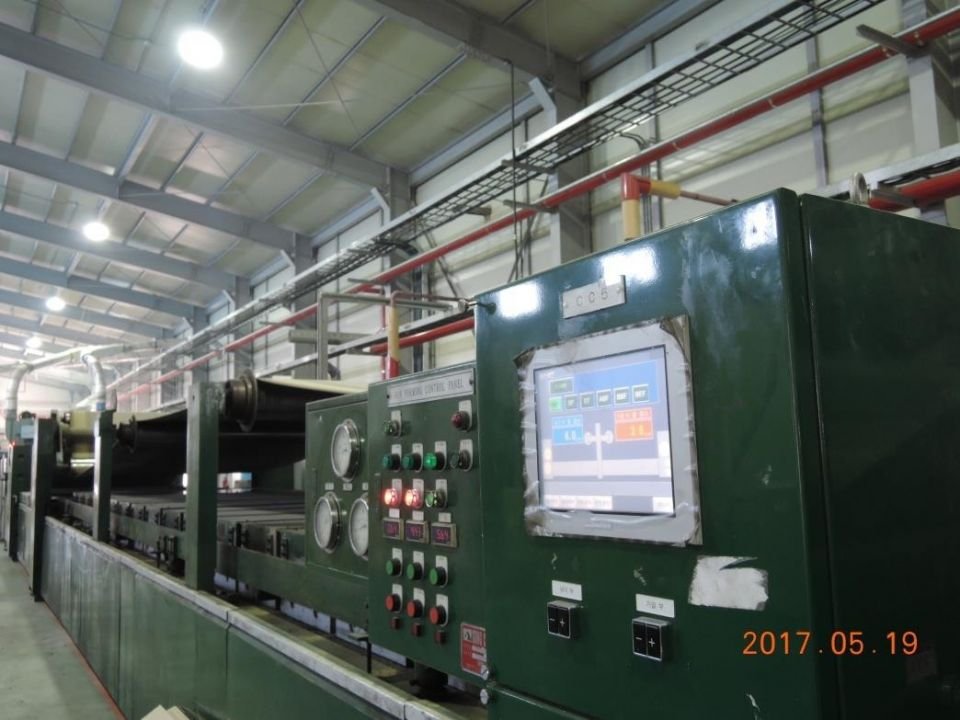

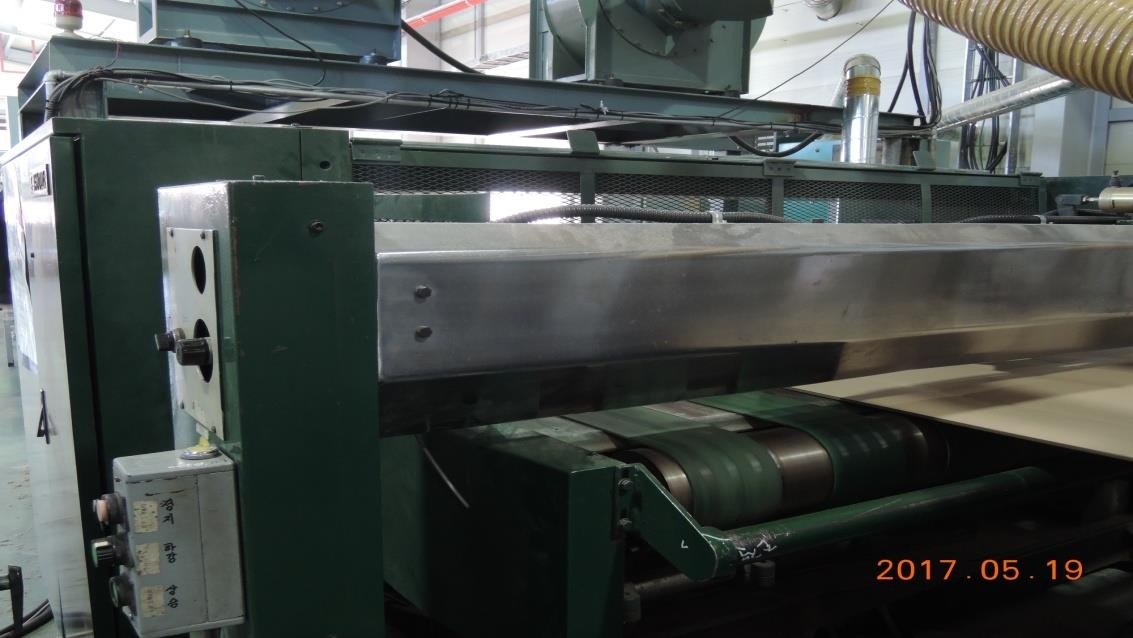

| 6) | DOUBIE BACKER |
| Type ; ISOWA AIR FORMING |
| Width ; 2,200 mm |
| Y.O.M ; 1989 |
|
7) |
SLITTER SCORE |
| Type ; Lower Knife |
| Width ; 1,800 mm |
| Y.O.m ; 2014, 05 |
| 8) | NC CUTTER |
| Type ; ISOWA DCC7-23241 |
| Mark |
| Width ; 2,200 mm |
| Y.O.M ; 1992, 10 |

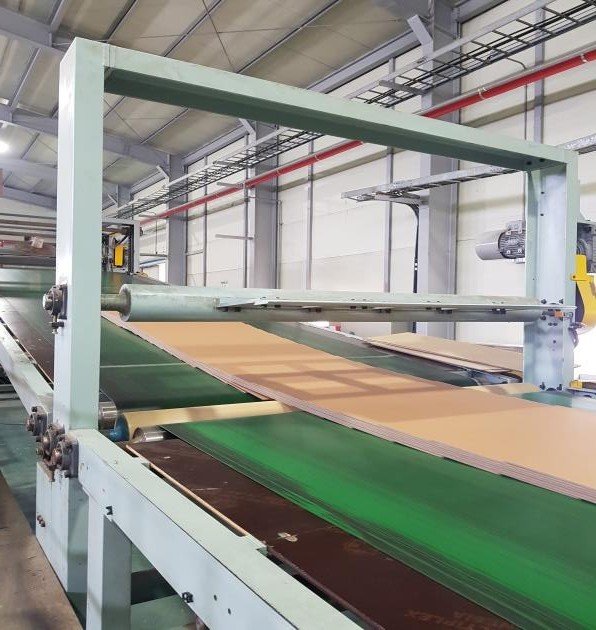

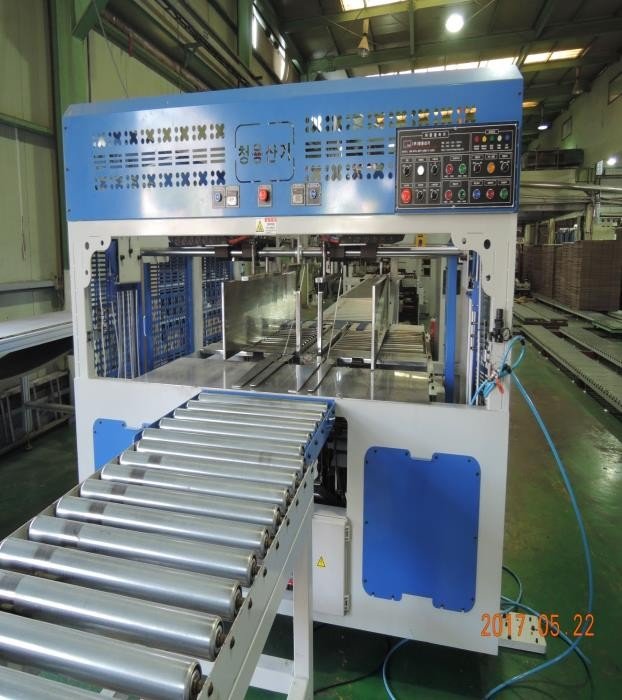

| 9) | UP – STACKER |
| Type ; KC Tech |
| Width ; 2,000 mm |
| Y.O.M ; 2017, 05 |
’
|
11) |

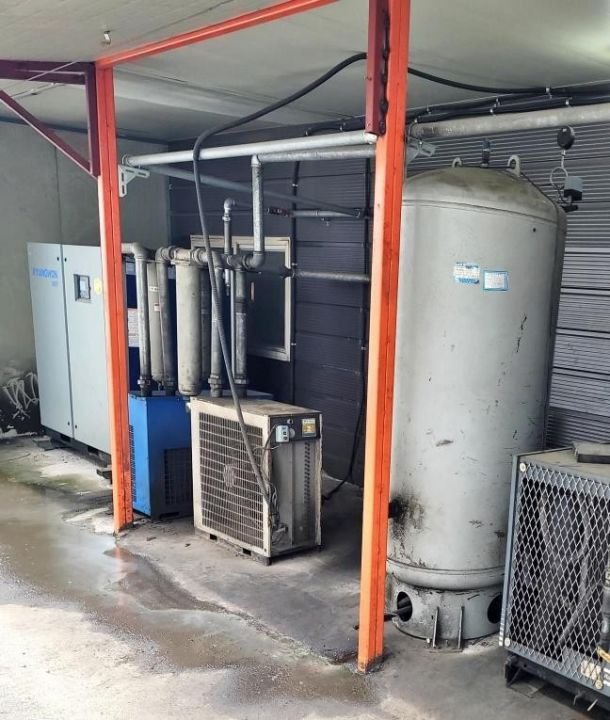

Air Compressor ( Atlas 30HP ) |
|
Atlas 30 HP x 2 units |
||
| Air receive tank |
|

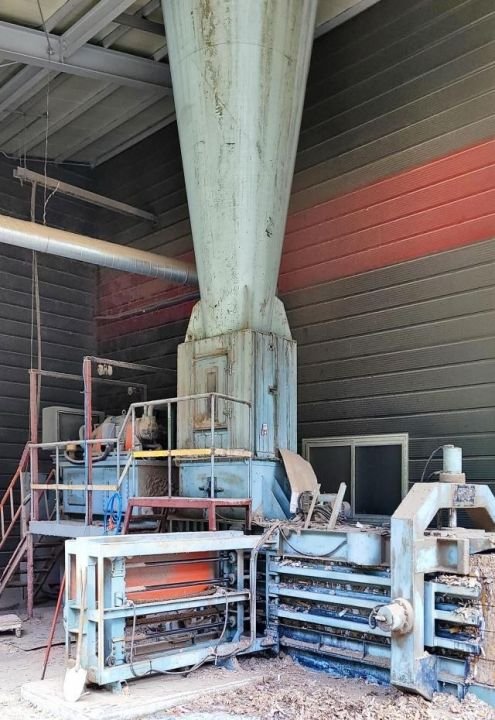

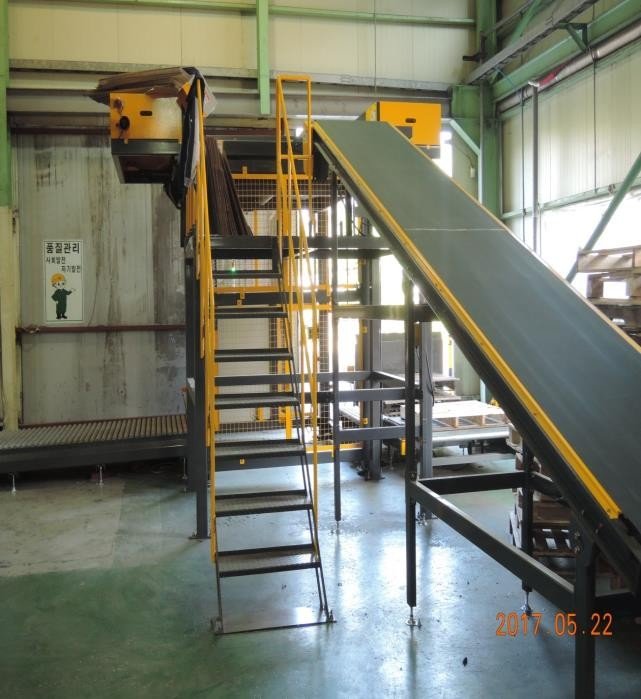

12) Scrap paper crusher and Scrap and scrap paper auto compressor
Capa’ : Cutting Blower 20㎾
Capa’ : 50 HP Compressed size : 950 x 950 x 1800 mm
Multi Coating Equipment

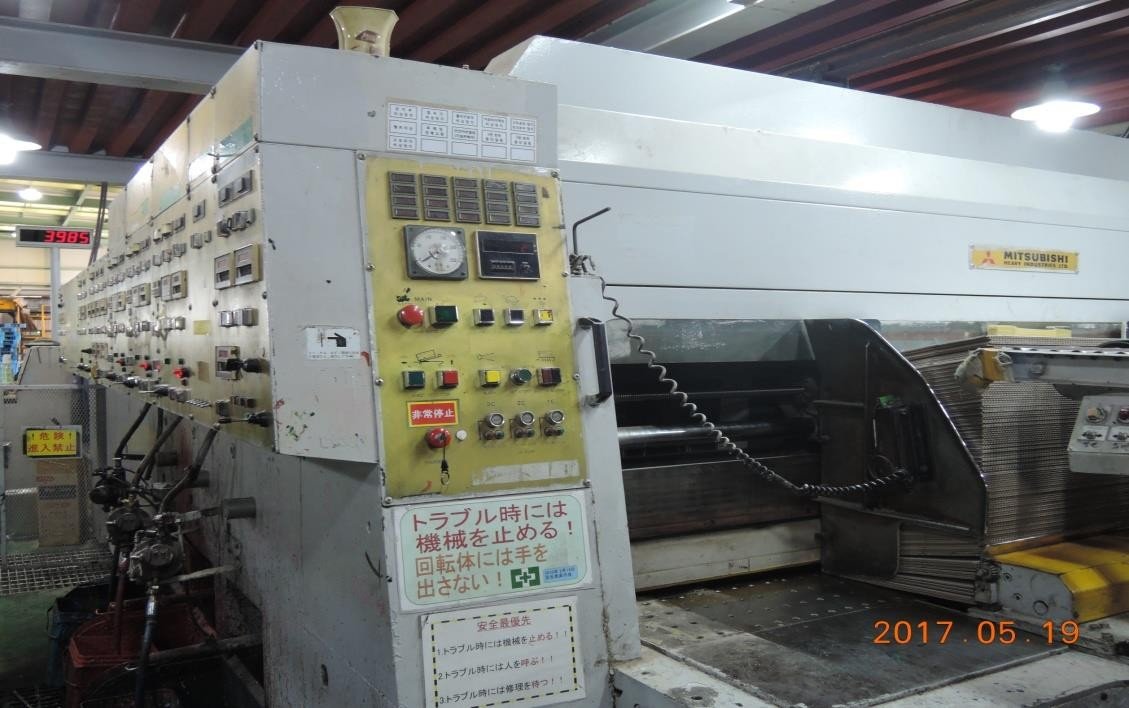

In-Line Printer
|
Type ; SUMMIT 115 ( S – 3FGR – 115 ) |
| Printing size ; 1220 * 2920 * 3COLOR (DIE CUTTER) |
| In Line ; GLUER M/C equipped |
| Max. speed ; 250 sheets/Min |
| Y.O.M ; 2016, 02 |
| Manufacturer ; MITSUBISHI (JAPAN) 1990, 10 |
